Using CloudFront build a distribution for a dynamic website – Lab 90

Lab 90

Services Covered

•  CloudFront
•  ELB

Lab description

In this lab a CloudFront distribution will be created, that will distribute a publicly accessible dynamic PHP page. The distribution will deliver contents of a Application Load Balancer from 2 EC2 Instances which host a PHP webpage. Tasks:

• Create EC2 Instances, launch them with Bash script
• Create Application Load Balancer
• Create a Targer Group
• Create a CloudFront Distribution

Lab date

02-10-2021

Prerequisites

• AWS account

Lab steps

1. Start with launching two EC2 Linux 2 AMI Instances of type t2.micro. Add User data:

   #!/bin/bash

   sudo su

   yum update -y

   yum install httpd php -y

   systemctl start httpd

   systemctl enable httpd

   cd /var/www/html/

   wget https://labtask185.s3.amazonaws.com/index.php

   systemctl restart httpd

   This will install php server called httpd start it and set an index page.

   Create a new security group that allow SSH, HTTP and HTTPS traffic from anywhere. We won’t be needing security keys for this lab.

2. Go to the instances public IPv4 address, for example:

   http://54.235.53.92/index.php

   You can pass a query string parameter id and the value will be displayed in the page:

   http://54.235.53.92/index.php?id=100-Days-In-Cloud-Challenge

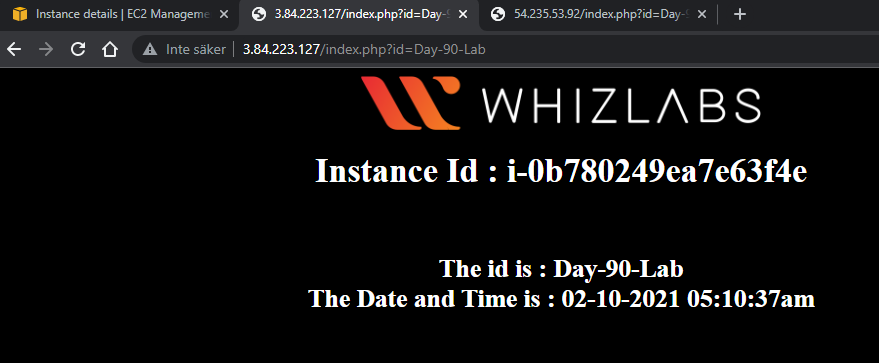

   Similar thing should work for on the second instance:



3. Create a Target Groups. Under Basic configuration select Instances, give a name, choose HTTP as protocol and default VPC. Configure health check path as /index.php.

   Register the earlier created Instances as targets.

4. Create an Application Load Balancer, Internet-facing, IP address type: IPv4, Default VPC and mapping in all available zones. Remove the default security group and select the one created earlier. Select listener as the Target Group created earlier.



   Now the Load Balancer has a DNS name that you can navigate to and it’ll will equally split the traffic between the two instances.



5. Create the CloudFront Distribution. Choose the Load balancer name as a Origin domain. Leave all as default and scroll down to

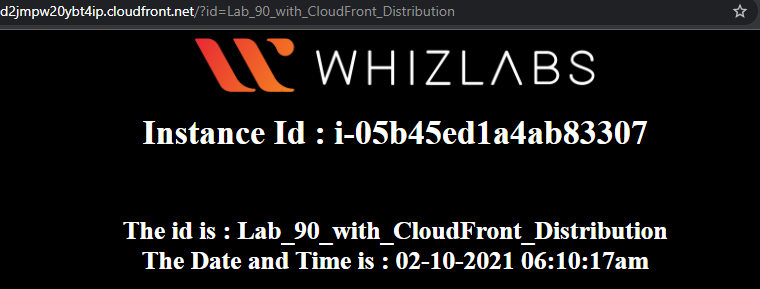

   TTL option to be disabled for dynamic contents, since our site accepts the query string parameter id. Click on the Create distribution. This process might take a while. When done you will be able to test the Distribution domain name



6. Now that the distribution is deployed it’s time for a clean-up. Delete EC2 Instances, Load Balance and CloudFront distribution.

Lab files

• None

Acknowledgements

• whizlabs
