Lab practice’s creating VPC, subnets, an Internet Gateway, a route table and configuring these services to work together.

Lab 91

Services Covered

  • image Amazon EC2
  • image Elastic IP address
  • image AWS CLI
  • image-20211001142430577Internet Gateway

Lab description

Lab practice’s creating VPC, subnets, an Internet Gateway, a route table and configuring these services to work together. Then EC2 instance will be launched into the VPC and a page hosted on that instance using AWS CLI commands. Lab includes:

  • Usage of AWS CLI
  • Creating EC2 Instances
  • Creating VPCs, Internet Gateway, Route Table
  • Allocating and assigning Elastic IP address to the EC2 Instance
  • Creating subnets and Security Group Rules

Lab date

01-10-2021

Prerequisites

  • AWS account
  • putty for SSH connection

Lab steps

  1. In IAM create role for EC2 instance attach the AmazonEC2FullAccess permission to it.
  2. In EC2 launch an Amazon Linux 2 instance of type t2.micro. Then attach the created IAM role to it. Configure and assign a new security group that will allow SSH connections into the instance. Create and download new key pair.
  3. Connect to the instance using SSH and provided key pair.
  4. Create a VPC using AWS CLI. Run this command and change region accordingly:
    code
    aws ec2 create-vpc  --cidr-block 10.1.0.0/16 --region us-east-1

    ​ Copy and save the VPC ID

  1. Create a Subnet within the VPC
    code
    aws ec2 create-subnet --vpc-id vpc-076e268a59eb3b741 --cidr-block 10.1.1.0/24 --region us-east-1

    Replace the VPC with yours. Note the SubnetID

  2. Create an Internet Gateway
    code
    aws ec2 create-internet-gateway --region us-east-1

  3. Attach Internet Gateway to VPC. Replace VPC and IG ids with yours
    code
    aws ec2 attach-internet-gateway --vpc-id vpc-076e268a59eb3b741 --internet-gateway-id igw-062ea96ac99246cb4 --region us-east-1
  4. Create a Route table for VPC. Note the RouteTableID
    code
    aws ec2 create-route-table --vpc-id vpc-076e268a59eb3b741 --region us-east-1

  5. Create a public route in the Route table pointing to the Internet Gateway. Replace Route Table and Gateway ids with yours.
    code
    aws ec2 create-route --route-table-id rtb-0f79711b81e6401b5 --destination-cidr-block 0.0.0.0/0 --gateway-id igw-062ea96ac99246cb4 --region us-east-1
  6. Associate the Subnet with your Route table
    code
    aws ec2 associate-route-table  --subnet-id subnet-0729e993842e07ad7 --route-table-id rtb-0f79711b81e6401b5 --region us-east-1
  7. Create a Security Group
    code
    aws ec2 create-security-group --group-name my-sg --description "My security group" --region us-east-1 --vpc-id vpc-076e268a59eb3b741

    Note the security group ID.

  8. Add Rules allowing traffic for HTTP on port 80 and SSH on port 22
    code
    aws ec2 authorize-security-group-ingress --group-id sg-0770cff403a4005c7 --protocol tcp --port 80 --cidr 0.0.0.0/0 --region us-east-1
    code
    aws ec2 authorize-security-group-ingress --group-id sg-0770cff403a4005c7 --protocol tcp --port 22 --cidr 0.0.0.0/0 --region us-east-1
  9. Create a KeyPair
    code
    aws ec2 create-key-pair --key-name MyCLIKeyPair --query 'KeyMaterial' --region us-east-1
  10. Create user data file.
    code
    nano data.txt

    With following contents that will install a php server called httpd with an index html site and start the service:

    bash
    #!/bin/bash
sudo su
yum update -y
yum install httpd -y
echo "<html><h1>Welcome to Whizlabs Server</h1><html>" >> /var/www/html/index.html
systemctl start httpd
systemctl enable httpd

    Save the file.

  11. Create another t2.micro EC2 Instance with Amazon Linux 2 with the user data:
    code

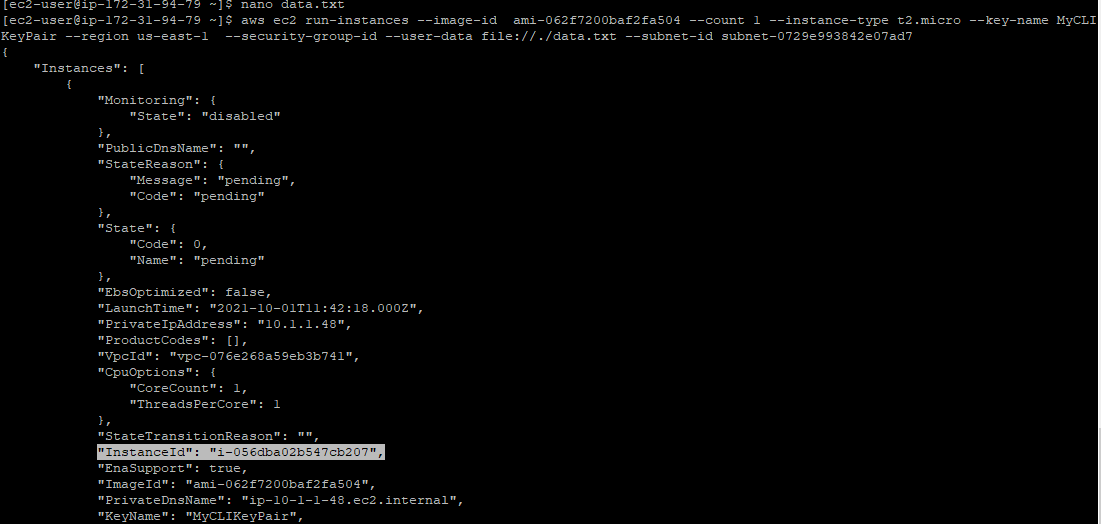

    aws ec2 run-instances --image-id  ami-062f7200baf2fa504 --count 1 --instance-type t2.micro --key-name MyCLIKeyPair --region us-east-1  --security-group-id sg-0770cff403a4005c7 --user-data file://./data.txt --subnet-id subnet-0729e993842e07ad7

    Note the new EC2 ID.

  12. Allocate an Elastic Ip address and note the AllocationID from the output
    code
    aws ec2 allocate-address --domain vpc --region us-east-1

  13. Associate the Elastic IP Address with the EC2 Instance (with your IDs)
    code
    aws ec2 associate-address --instance-id i-0b1f210708cc97bbf --allocation-id eipalloc-06387267b6f8733c2 --region us-east-1

    Go to the PublicIp address and check if everything works.

  14. Don’t forget to stop the instances:
    code
    aws ec2 stop-instances --instance-ids i-056dba02b547cb207 --region us-east-1

    Disassociate Elastic IP address:

    code
    aws ec2 disassociate-address --association-id eipassoc-0bcac2ed3d4837f86 --region us-east-1

    Release an Elastic IP address:

    code
    aws ec2 release-address --allocation-id eipalloc-06387267b6f8733c2 --region us-east-1

    Delete subnet, Internet Gateway and Route Table:

    code
    aws ec2 delete-internet-gateway --internet-gateway-id igw-062ea96ac99246cb4 --region us-east-1
    code
    aws ec2 delete-route-table --route-table-id rtb-0f79711b81e6401b5 --region us-east-1
    code
    aws ec2 delete-subnet --subnet-id subnet-0729e993842e07ad7 --region us-east-1
    code
    aws ec2 delete-security-group --group-id sg-0770cff403a4005c7 --region us-east-1

    This way clean-up process would be complete.
